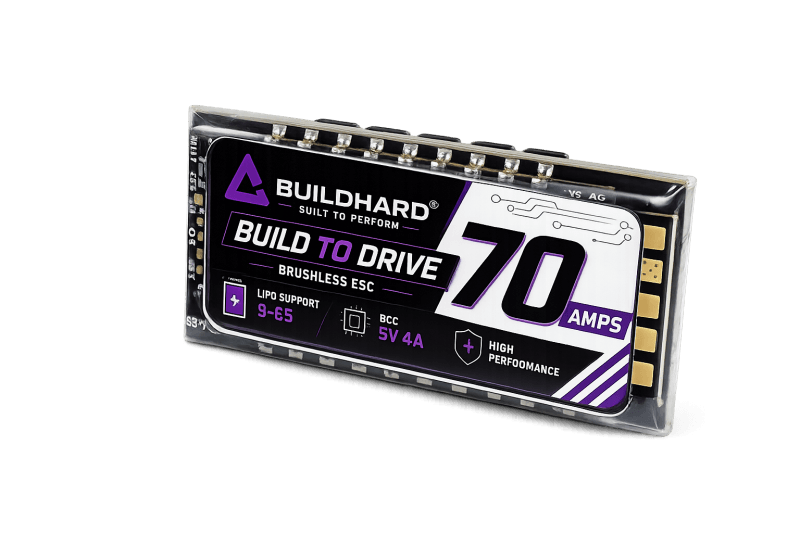

Built to drive AM32 ESC V2.5 70A Current 3-6S 7-26V Electronic Module 32-bit Main Control for Drone RC Model Aircraft
Rs 2,520.25
Exclusive of GST
(0 reviews)
The Buildhard Built to driveAM32 Brushless ESC V2.5 70A is a high-performance electronic speed controller designed for drones, RC aircraft, fixed-wing platforms, multirotors, VTOL systems, and robotics applications. Powered by a 32-bit AM32 firmware, it delivers smooth throttle response, fast motor startup, and reliable power delivery for demanding applications. Built with an optimized PCB layout, thick copper traces, and advanced SMT manufacturing, this ESC offers excellent electrical efficiency and improved thermal performance. The integrated heat sink and onboard capacitors help maintain stable operation even under continuous high-current loads. Supporting 3S to 6S LiPo batteries (7–26V), it is an ideal choice for FPV drones, UAVs, RC airplanes, and custom robotics projects.
1
Technical Specifications
Product NameBuilt to drive 70 amps
Continuous Current 70A
Input Voltage 7V–26V
Battery Support 3S–6S LiPo
Firmware AM32 (32-bit)
Processor 32-bit MCU

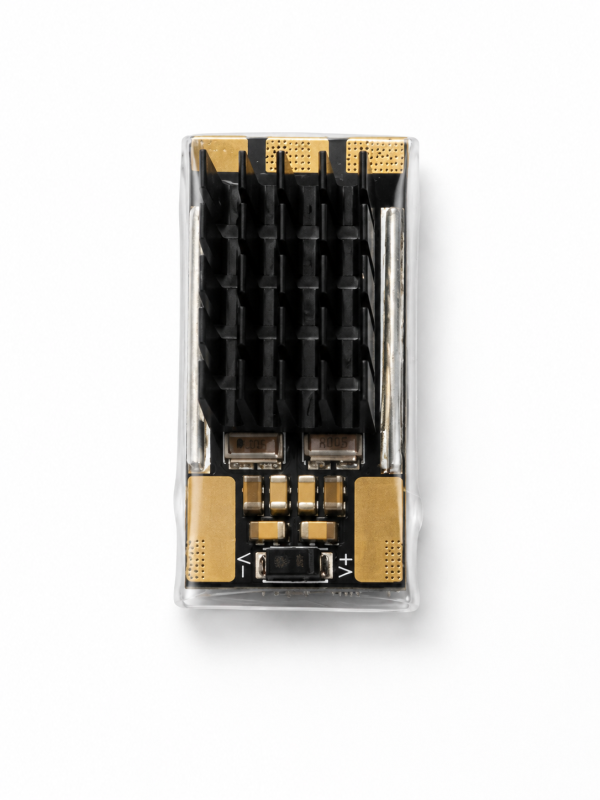

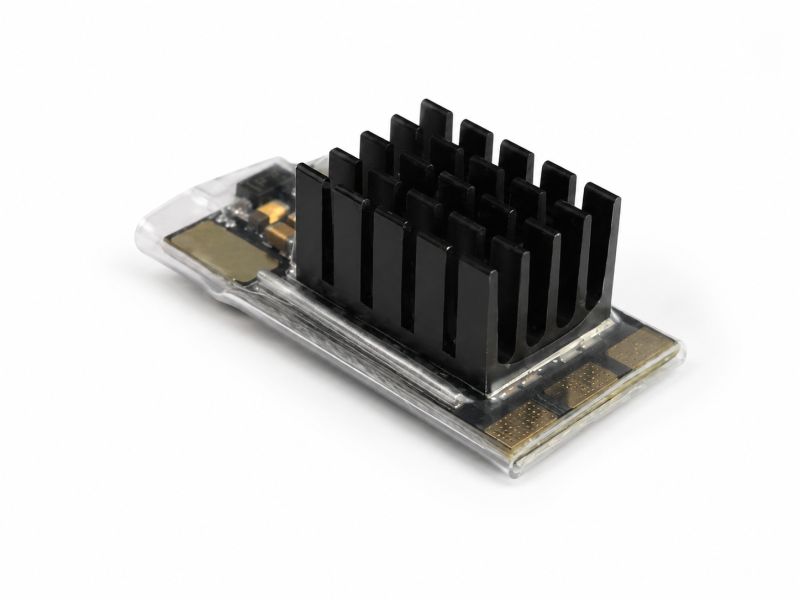

Cooling Integrated Aluminum Heat Sink
PCB Heavy Copper, Optimized Layout
Capacitors Onboard Low-ESR Capacitors
Recommended Use FPV Drone, RC Aircraft, 8kg combat robot
Package Includes
- 1 x Built to drive 70 amps esc
- 1 x 300 microfarads capacitor
- 1x 470 microfarads capacitor
Important Note
The ESC is rated for 70A continuous current. It can handle higher burst currents for short durations under proper cooling and operating conditions. Continuous operation above the rated current may reduce performance and lifespan.
Key Features
Discover what makes Built to drive AM32 ESC V2.5 70A Current 3-6S 7-26V Electronic Module 32-bit Main Control for Drone RC Model Aircraft stand out from the rest.
- Continuous Current Rating: 70A
- Supports 3S–6S LiPo Batteries (7–26V)
- High-performance 32-bit AM32 Firmware
- Fast motor startup with smooth throttle response
- Optimized PCB design for improved efficiency
- Heavy copper PCB for better current handling
- Lightweight and compact design
