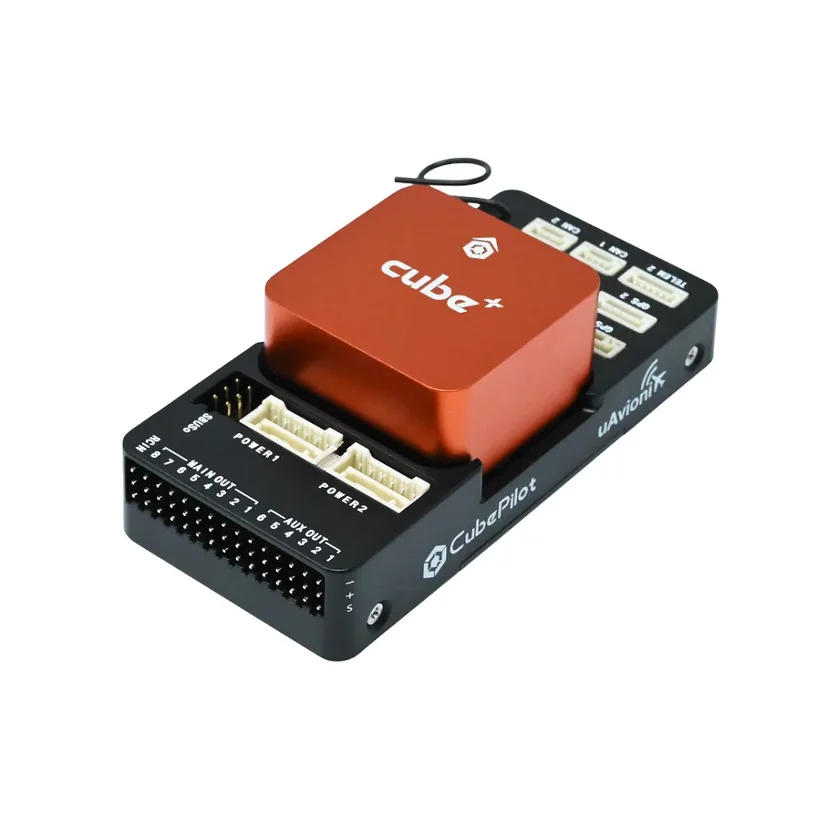

Cube Orange+ Standard Set ADS-B
Rs 55,299.30
(0 reviews)
The Cube Orange+ Standard Set ADS-B comes with an H7 processor, features a 1,090 MHz ADS-B receiver from Avionic, automatically avoids aircraft, and Is integrated into the new ADS-B carrier board. Through the parameter setting, the autopilot can optionally set up the cube to allow the vehicle to automatically avoid an aircraft that is detected in an exclusion zone set by the pilot.
1
Technical Specifications
Model: HX4-06222
Input voltage: 3.3 V / 5 V
Sensors: Accelerometer, Gyroscope, Compass, Barometric Pressure Sensor
Supported RC signalsPPM/SBUS/DSM
SensorTriple IMU System
Power redundancyTriple redundancy
Sensors detailsIMUl(lsolated) ICM42688 IMU2(1solated) ICM20948 or ICM42688 IMU3(Fixed) ICM20649 or ICM45686 MS5611x 2(Baro)
Supported firmware ArdupilotPX4, and Hionos 00-178C
Supported vehicle typeFixed-wing plane Multicopters Helicopter VTOL-plane Rover/boat/submarine
Weight (g):73
Additional Specs.:Carrier Board Size (mm): 94 x 44.3 x 7.3, Chassis Material: CNCAluminum Alloy(cube) +ABS Molding(Carrier Board), Cube Size (mm): 38.4 x 38.4 x 22
Operating Temperature (°C):-10 to 60
PWM I/O14
GPS/Serial interfaces4
Debug Interface:2
I2C:2
Key Features
Discover what makes Cube Orange+ Standard Set ADS-B stand out from the rest.
- Cube Orange targets education, amateur drone lovers, and professionals with cost-effective flight control hardware.
- ncludes new generation of more powerful H7 processor, with stronger performance, faster processing, and increased security with built-in
- triple-redundant sensors, temperature control shock absorption IMU.
- With the help of flight software, Cube Orange can completely fly any remotely controlled aircraft, helicopter or multi-rotor vehicle and turn it into a more professional UAV platform.
- A standard carrier board with an integrated 1090MHz ADS-B receiver allows the software to receive information about the location of manned aircraft in the area.
- Receives information such as position, altitude, speed, etc, which can all be viewed in Mission Planner.
- Through settings, you can optionally set up your cube to allow the vehicle to automatically avoid aircraft that is within an exclusion zone set by you
