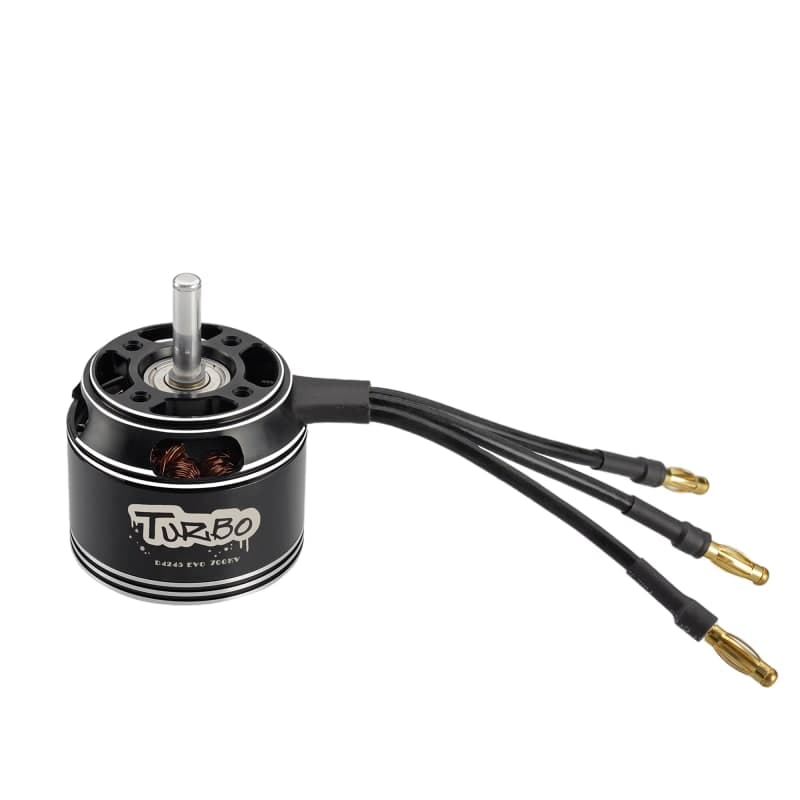

D4245EVO Fixed Wing Motor
Rs 2,944.05
Exclusive of GST
(0 reviews)
The D4245EVO Fixed Wing Motor is a high performance brushless motor designed for RC fixed wing aircraft UAV systems combat robotics and advanced robotic projects. It delivers strong torque smooth throttle response and efficient power output for high speed and heavy duty applications. The motor is built with a CNC aluminum body high temperature copper winding and precision balanced rotor for reliable and stable operation. It supports 5S to 6S LiPo batteries and provides excellent efficiency with low heat generation during long runtime. This motor is suitable for fixed wing airplanes robotic drive systems industrial automation and custom DIY projects. Its lightweight and durable design helps improve performance while maintaining stability and control in demanding applications.
1
Technical Specifications
KV700
Max watts: 1013W
Max Current: 55.63A
No Load current: 1.47A/10V
Resistance: 45.4mΩ
No. of Poles:14
No. of Phases:3
Shaft Diameter (mm):5
Rated RPM9600 | 19200
Battery:5-6S Lipo

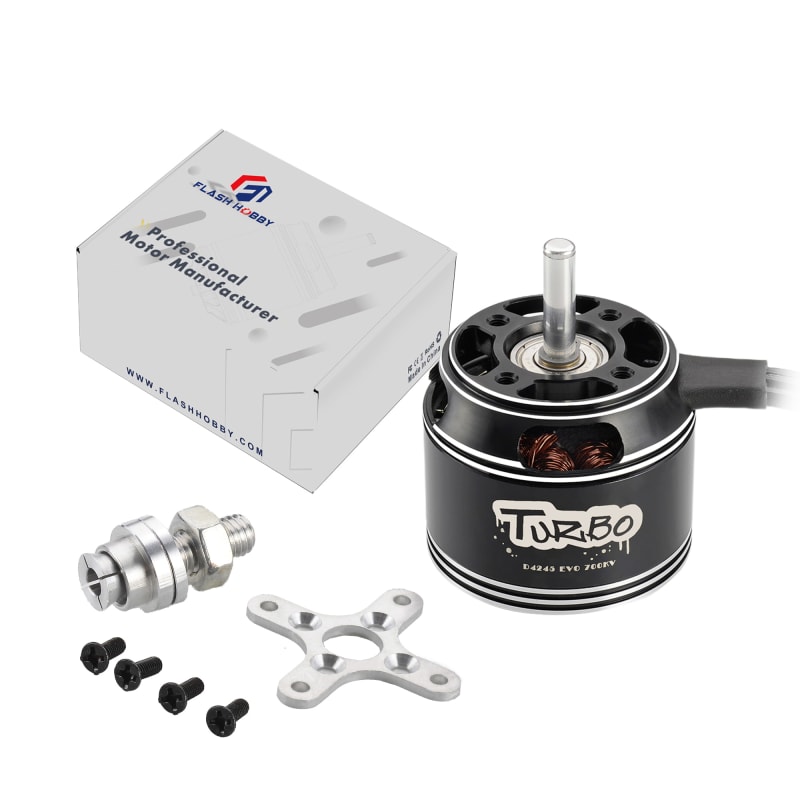

Package Includes
- 1 x D4245EVO Fixed Wing BLDC Motor
- 1 x Packet of Bolts, Bullet Connectors & Other Accessories
- 1 x Cross Mount
- 1 x Propeller Mount
Key Features
Discover what makes D4245EVO Fixed Wing Motor stand out from the rest.
- 48H Level Magnet
- Precision Balanced Rotor Test
- 14P12N High Torque Motor Design
- CNC 6061-T6 Aluminum Bell
- High RPM Imported(NSK/NMB) Bearing
