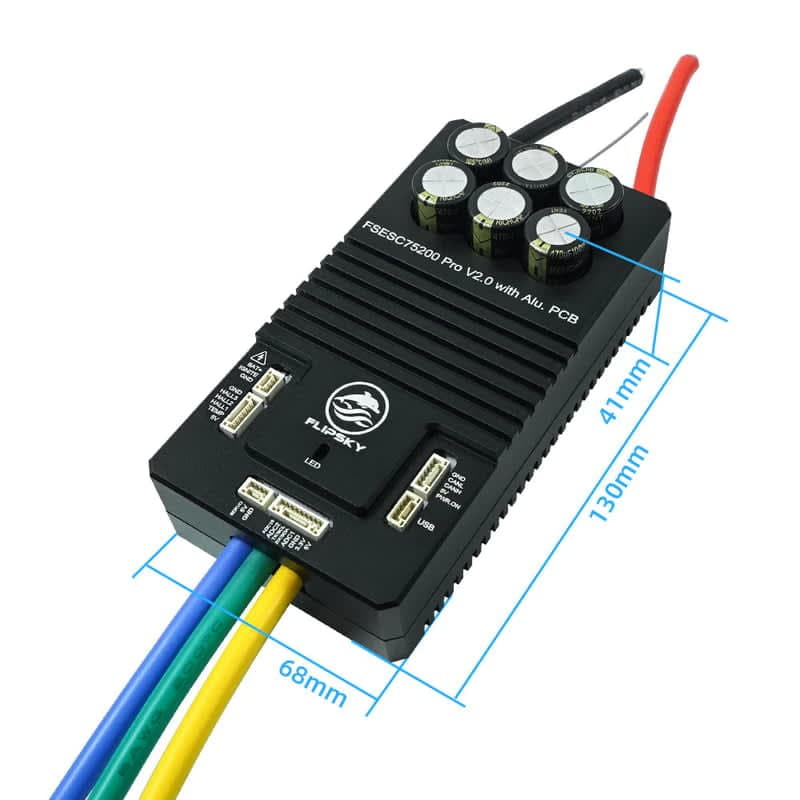

Flipsky 75200 Pro V2.0 With Aluminum PCB Based on VESC
Rs 17,549.10
Exclusive of GST
(0 reviews)
The Flipsky 75200 Pro V2.0 is a high-performance VESC-based motor controller designed for electric skateboards, e-bikes, scooters, robots, and other EV projects. Built with an advanced aluminum PCB for superior heat dissipation, it supports 14–84V input, up to 300A burst current, FOC/BLDC control modes, regenerative braking, Bluetooth connectivity, and multiple communication interfaces including CAN, UART, and USB. Its powerful STM32 processor and customizable VESC firmware provide smooth, efficient, and precise motor control for demanding applications.
1
Technical Specifications
PROTECTION Low/high voltage, overcurrent, and temperature protection.
Control Modes Current, Duty Cycle, Speed, PID.
IMU Support: Compatible with MPU and similar modules via IIC.
CPU32F405, 168MHz
Package Includes
- 1 x Flipsky 75200 Pro V2.0 VESC
- 1 x USB Cable
- 1 x Connector Cable
- 1 x User Manual Page
Key Features
Discover what makes Flipsky 75200 Pro V2.0 With Aluminum PCB Based on VESC stand out from the rest.
- Firmware: 6.02, supports firmware upgrade
- Voltage: 14-84V (safe for 4-20S)
- Continuous current: 50V/200A; 75V/150A
- Burst: 300A
- BEC: 5V@1A
- Support Modes: DC, BLDC, FOC (sinusoidal)
- ERPM: 150000
- Communication Ports: USB, CAN, UART, SPI, IIC
- Supported Sensors: ABI, HALL, AS5047, AS5048A
- Input Source Support: PPM, ADC, NRF, UART
- Supported Sensorless: Yes
- Regenerative capacity: Yes
- Programmable via VESC_TOOL: Yes
- Phase Filter: Yes
- Power Switch Button: Red
- Size: 130x68x41mm
- Motor/power wire size: 8 AWG
