LUCID 12S 90A ESC AM32
Rs 8,699.00
Exclusive of GST
(0 reviews)

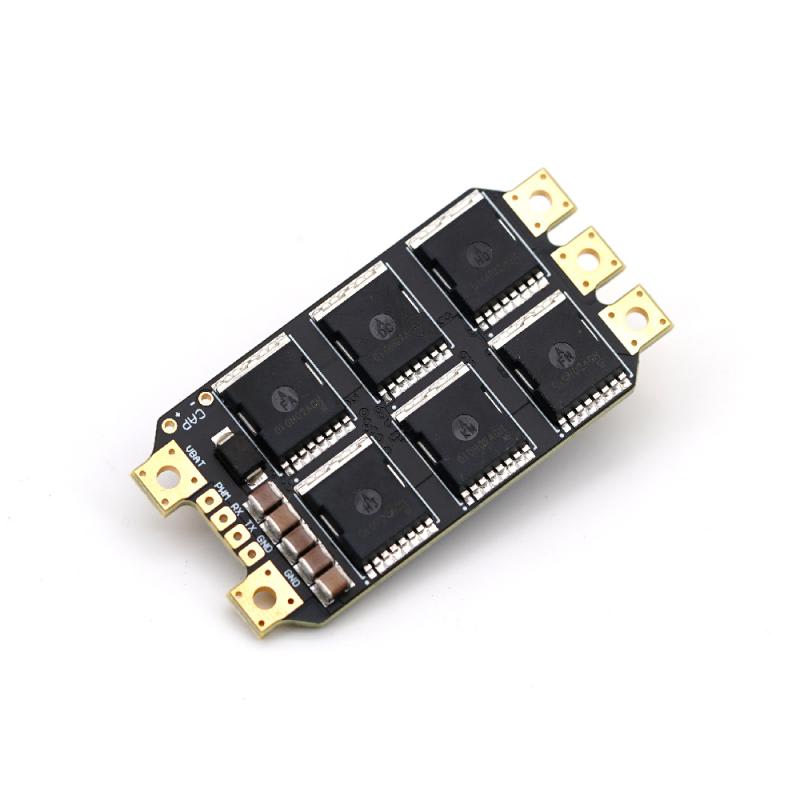

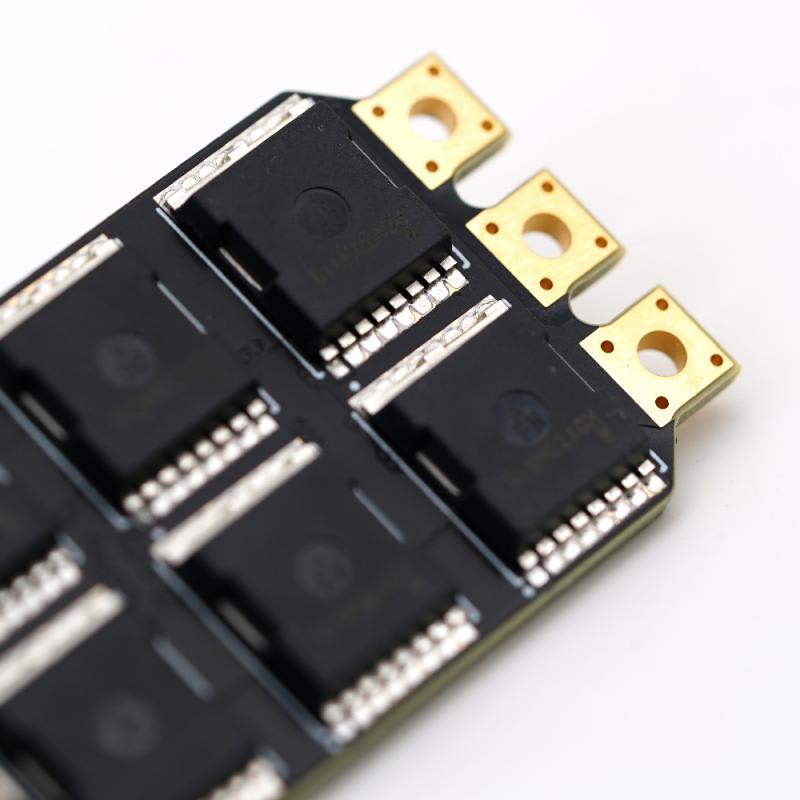

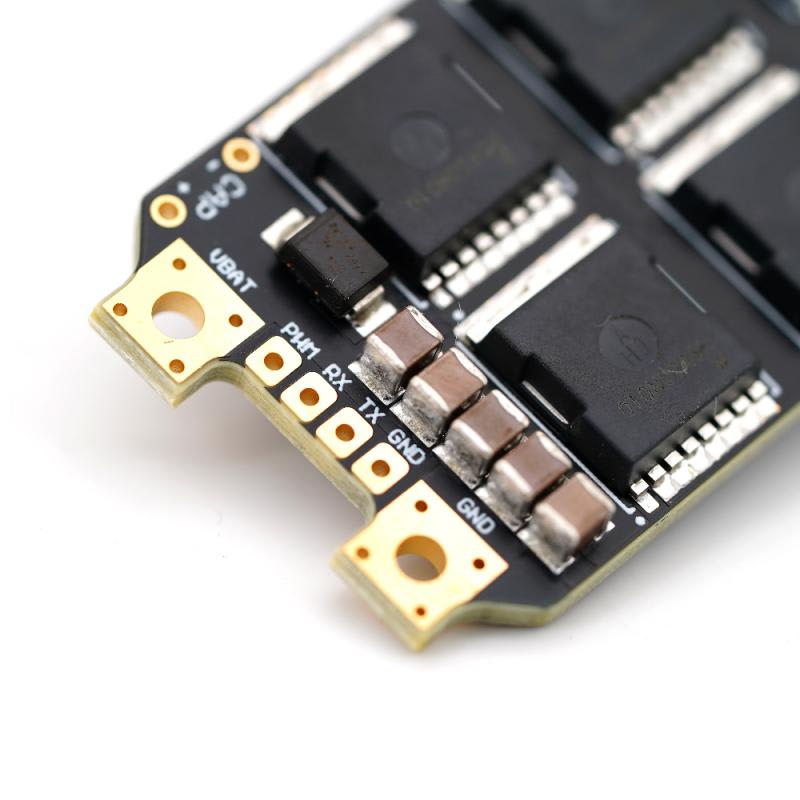

The TBS Lucid 12S 90A ESC is a high-performance AM32-based electronic speed controller designed for long-range FPV drones, cinelifters, RC airplanes, and heavy-duty DIY aerial projects. It supports 3S–12S LiPo batteries and delivers up to 90A continuous current with 120A peak burst power for demanding flight applications. The ESC uses AlkaMotors32 (AM32) firmware for ultra-smooth throttle response, fast motor startup, and reliable high-voltage performance. Its 8-layer high-current PCB improves heat dissipation without large heatsinks, keeping the setup lightweight and efficient. Built-in TVS protection helps protect against voltage spikes during aggressive flying. Supporting bidirectional DShot telemetry and KISS ESC protocols, the TBS Lucid ESC is ideal for freestyle drones, long-range aircraft, cinelifters, VTOL builds, and advanced RC engineering projects requiring stable and powerful motor control.
1
Technical Specifications
Rated current: 70A, 60 seconds, 90A 40 seconds
Peak Current: 120A, 30 seconds
Input: 3-12S Lipo
Protocol: Bi-directional Dshot 300/600), KISS ESC Telemetry
ESC Current port: Yes
BEC: No
Size: 57.75mm x 29mm

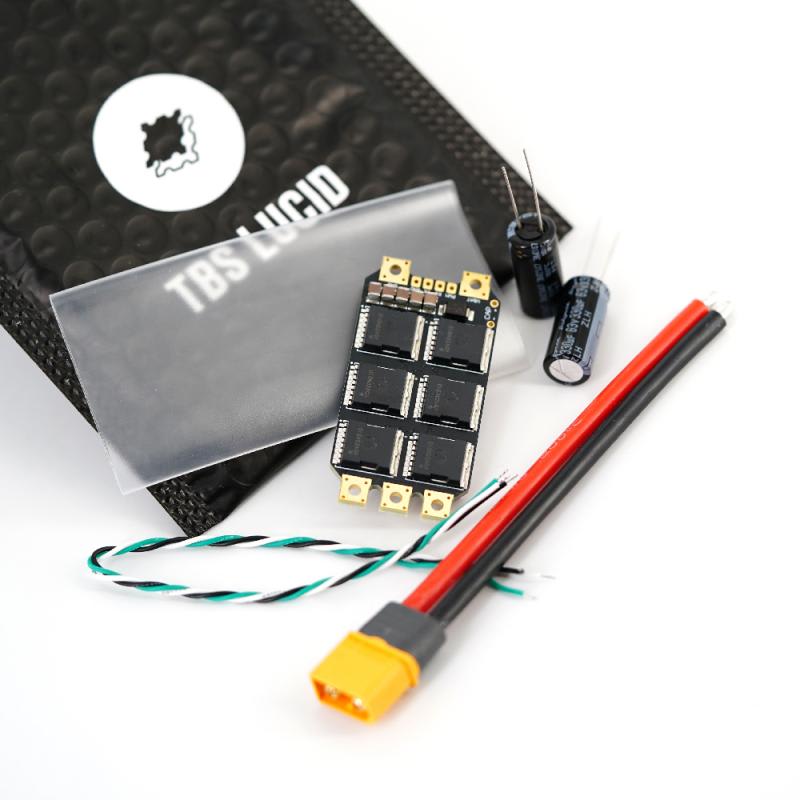

Package Includes
- 1x TBS Lucid 12S ESC
- 1x XT60 12 AWG wire
- 1x 3-color wire for PWM or Serial (D-Shot, CRSF)
- 1x shrink tube (transparent)
- 2x 330uF 12S low-ESR Capactior
