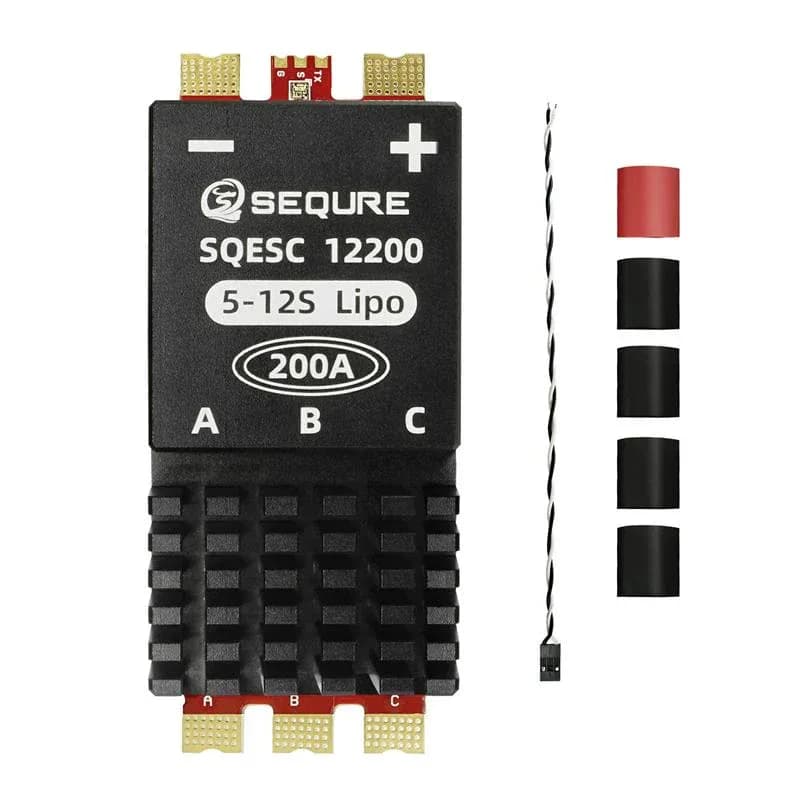

SEQURE SQESC 12200 Brushless Electric Speed Controller
Rs 9,649.00
Exclusive of GST
(0 reviews)
The SEQURE SQESC 12200 Brushless Electric Speed Controller is a high-performance 200A electronic speed controller designed for heavy-duty FPV drones, RC airplanes, plant protection drones, boats, RC cars, and advanced robotics projects. Supporting 5S–12S LiPo batteries, this ESC delivers powerful and stable motor control for high-current applications. It uses a 32-bit STM32G071 processor with up to 128KHz PWM frequency for ultra-smooth throttle response and efficient performance. The ESC supports BLHeli_32, AM32, and ESCape32 firmware, giving users flexible tuning and advanced telemetry options. Its CNC aluminum heatsink and high-power MOSFET design provide excellent cooling during long high-load operation. With support for DShot, PWM, Oneshot, and Multishot protocols, the SQESC 12200 is ideal for X-Class drones, cinelifters, combat robots, heavy UAVs, and custom RC engineering builds requiring reliable high-power ESC performance.
1
Technical Specifications
ModelSQESC 12200
ProcessorSTM32G071
Input voltageDC 18V-50.4V（5-12S Lipo）
Continuous current (good heat dissipation)200A
Maximum current (good heat dissipation)250A
Support firmwareBLHeli_32，AM32
BECNO
Signal protocolDshot (All),PWM,Oneshot,Multishot,etc.
Programming parameter adjustmentSupport
Throttle calibrationSupport
Timing angle settingSupport
Current detectionSupport
Telemetry signalSupport
Motor steering settings Support
RGB LED color lightsSupport
Power cable(if any) 8AWG Application scenarios 8AWG
Application scenariosSuitable for multi-axis drones, fixed-wing aircraft models, multi-rotor drones, plant protection machines, model ships, RC model cars, and rock crawlers.
